Aarna Briá

Doors

Description

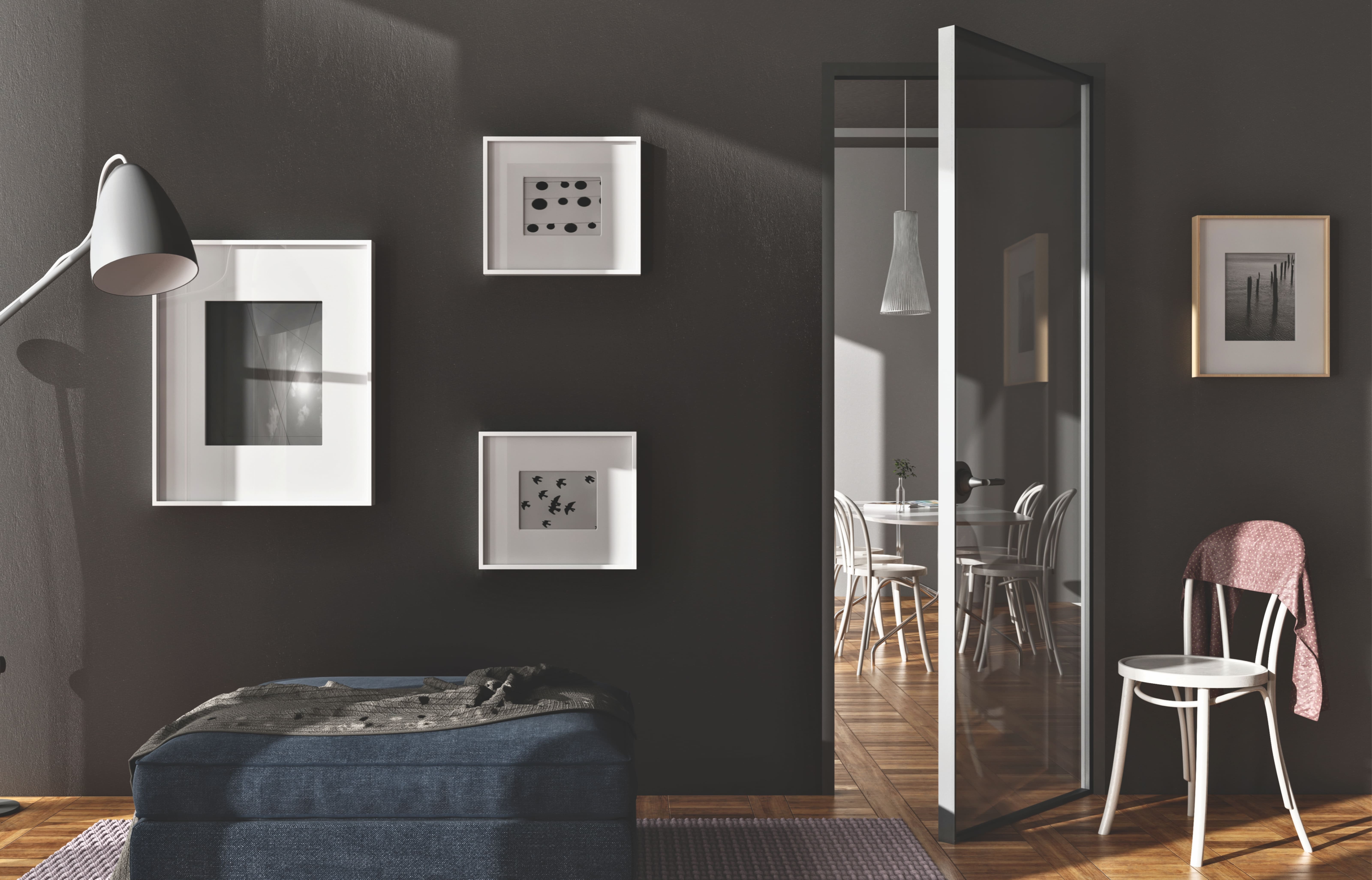

Aarna Briá is the sleekest matte-finished interior aluminum door available, designed to challenge conventional wooden doors through its distinctive style. It is a versatile solution for residential and corporate spaces, featuring a barrier-free bottom and slim bullet hinges for a seamless look. The system is engineered for efficiency with concealed reversible hinges that allow for flexible opening directions and very short assembly times.

Key Features

  • System: Aarna Briá Interior Aluminum Door Series.
  • Configurations: Available in both swing and pocket versions, with standard or slim profile options.
  • Specialized Options: Features an exclusive telescopic aluminum jamb designed to hide variations in wall thickness.
  • Components: Includes a secure locking system with a key lock mechanism accessible from the outside and a mechanical knob on the inside.

    • ‍

    Dimensions

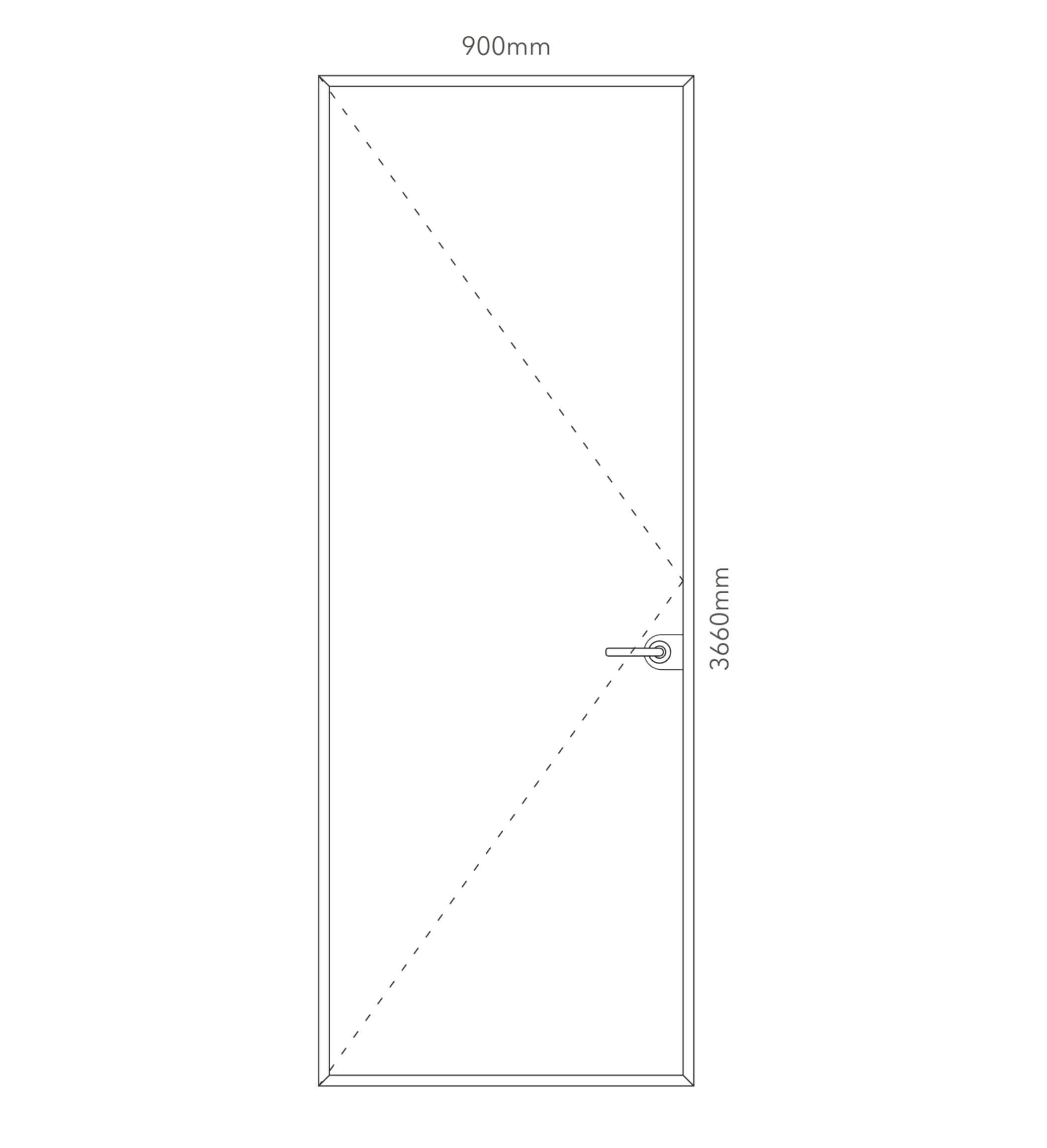

  • Maximum Height: 3660 mm.
  • Maximum Width: 900 mm.

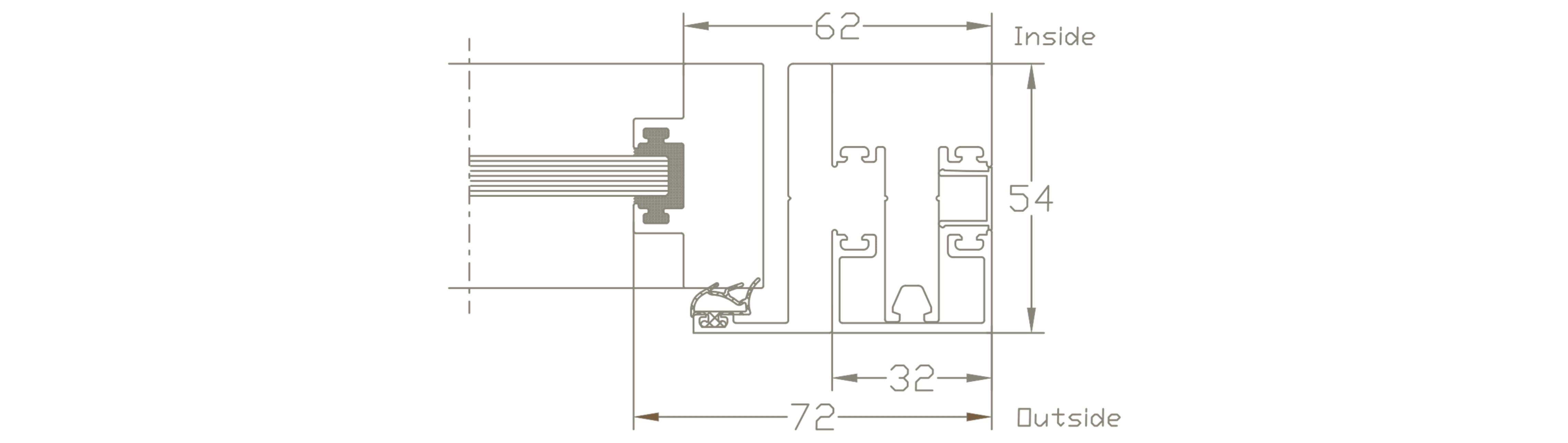

  • Profile Dimensions: * Outer Frame Depth: 72 mm.
    • Inner Frame Depth: 62 mm.
    • Visible Profile Width: 54 mm.
    • Internal Component Width: 32 mm.

    • ‍

    Technical Specifications

  • Fabricator: Axsys Solutions (Aarna Series).
  • Glazing Thickness: Accommodates glass up to 10 mm.
  • Hardware Compatibility: Equipped with concealed reversible hinges and pivot options.
  • Weight Capacity: Designed to support a maximum weight of 100 kg.
  • Views Provided: Sectional details for frame depths and internal components are available.

    • ‍

    Technical Diagram
